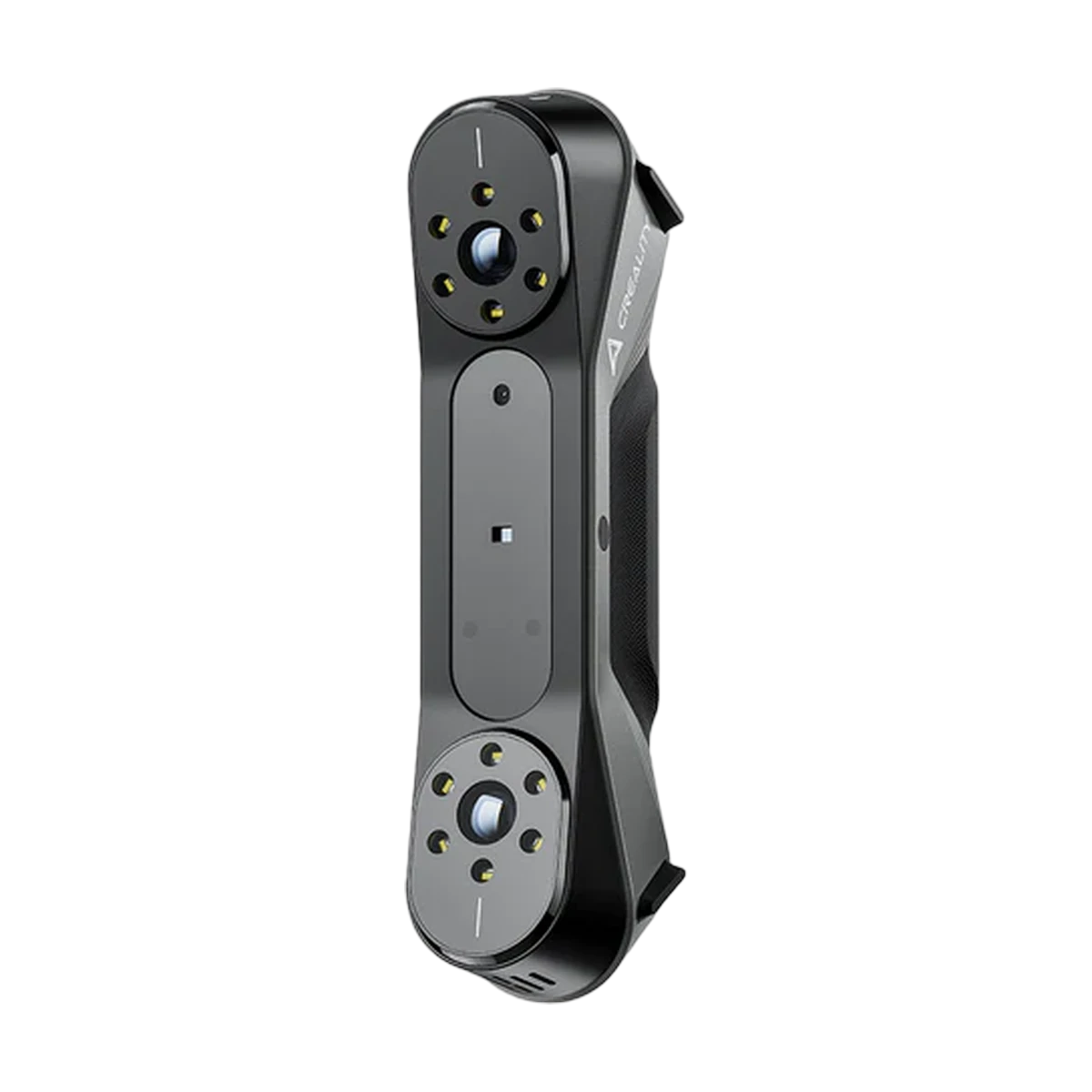

Creality 3D Scanner CR-Scan Raptor 3D Printing Handheld Scan Machine 0.02 mm Accuracy 60fps Scanning Speed Hybrid Blue Laser & NIR
Scanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured light)
>>Blue Light(Blue 7-line laser) Mode:
Accuracy: Up to 0.02mm @ 100mm [1]
Scanning Speed: Up to 60fps
Min. scanvolume: 5mm x 5mm x 5mm
Single Capture Range: 270mmx170mm@300mm
Working distance: 150mm-400mm
>>NIR(infrared binocular structured light) Mode:
Scanning Speed?Up to 20fps
Single Capture Range?930mmx580mm@1000mm
Working distance: 170mm-1000mm
Alignment mode: Marker / geometry / texture
3D imaging camera resolution: 1920×1200
Color Supplemental Light: 12 white LEDs
Marker Recognition Enhancement: 12 infrared LEDs
Laser Safety: Class I (eye safe)
Output format: OBJ/STL/PLY
Data interface: TypeC/USB3.0
Device Dimensions: 215mmx50mmx74mm
Calibration board: High-precision glass calibration board
Wireless Scanning: Supported in conjunction with future wireless scanning accessories
System Support?Windows/macOS
Operating temperature?-10°C to 40°C
Operating humidity: 0-90%RH
Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
