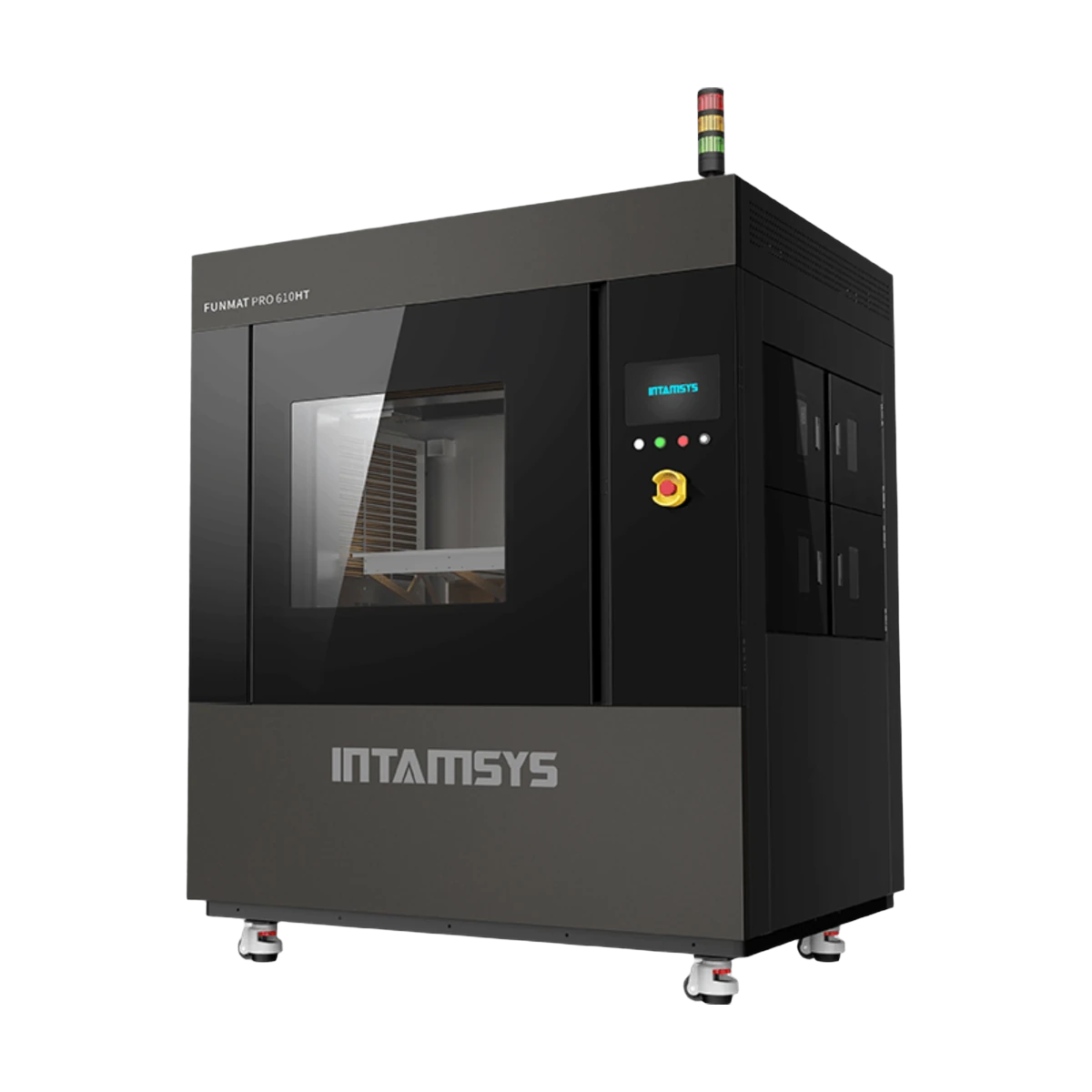

Intamsys FUNMAT PRO 610 HT
Description The FUNMAT PRO 610 HT is the latest addition to the INTAMSYS 3D printers FUNMAT serie. It is an industrial high-end machine designed for critical requirement functional part test & low volume production. The
Description
Intamsys FUNMAT PRO 610 HT est disponible chez Max4D au Maroc (marque Intamsys) — catégorie 3D Printers FDM. Prix affiché : 1.199.990 MAD TTC. Livraison 24-48h, paiement en MAD, support technique local. Besoin d'une pièce plutôt que d'une machine ? Voir notre service d'impression 3D ou le guide d'achat imprimante 3D Maroc.
The FUNMAT PRO 610 HT is the latest addition to the INTAMSYS 3D printers FUNMAT serie.

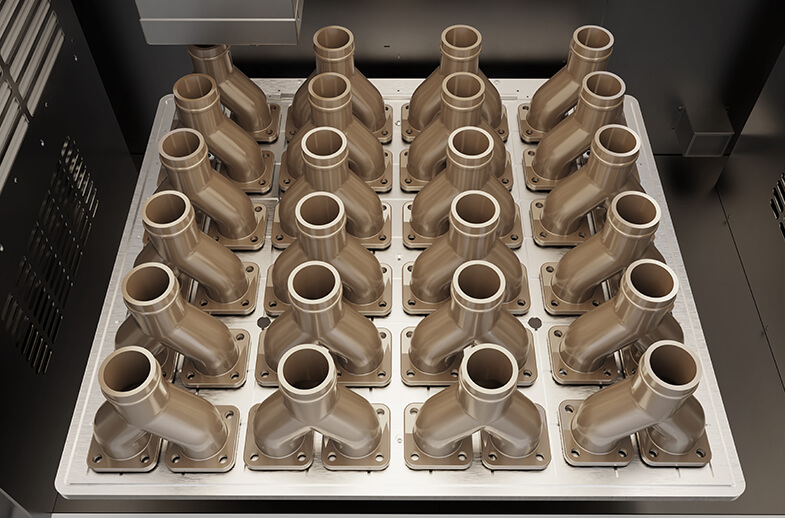

It is an industrial high-end machine designed for critical requirement functional part test & low volume production.

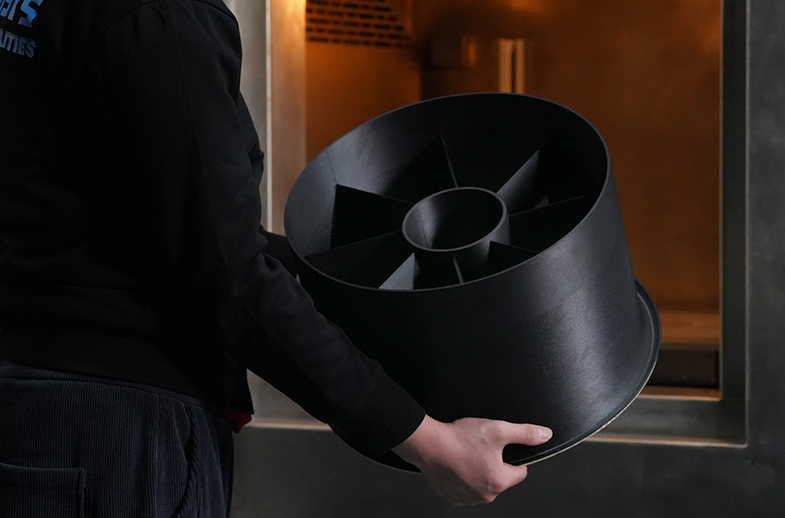

The high build volume of 610x508x508mm enables you to print big size parts.

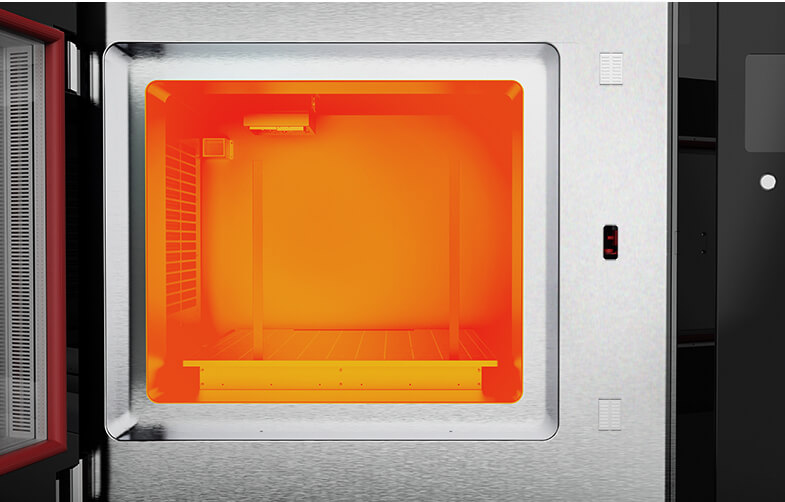

THE SYNERGY OF HIGH BUILD VOLUME AND VERY HIGH TEMPERATURE THERMAL DESIGN

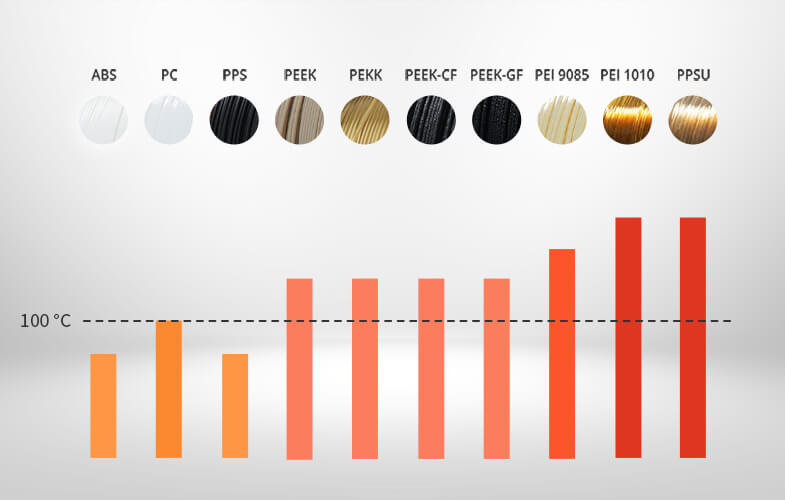

EXTREMELY HIGH TEMPERATURE FOR PRINTING BIG SIZE FUNCTIONAL MATERIALS SUCH AS PEEK, ULTEM (PEI) & PPSU WITHOUT WARPAGE & DELAMINATION.
ADVANCED
THERMAL
SYSTEM
50-MICRON
ULTRA-HIGH RESOLUTION
AMAZING PRECISION. SPECTACULAR DETAILS.
DESIGNED FOR INDUSTRIAL QUALITY 3D PRINTING.

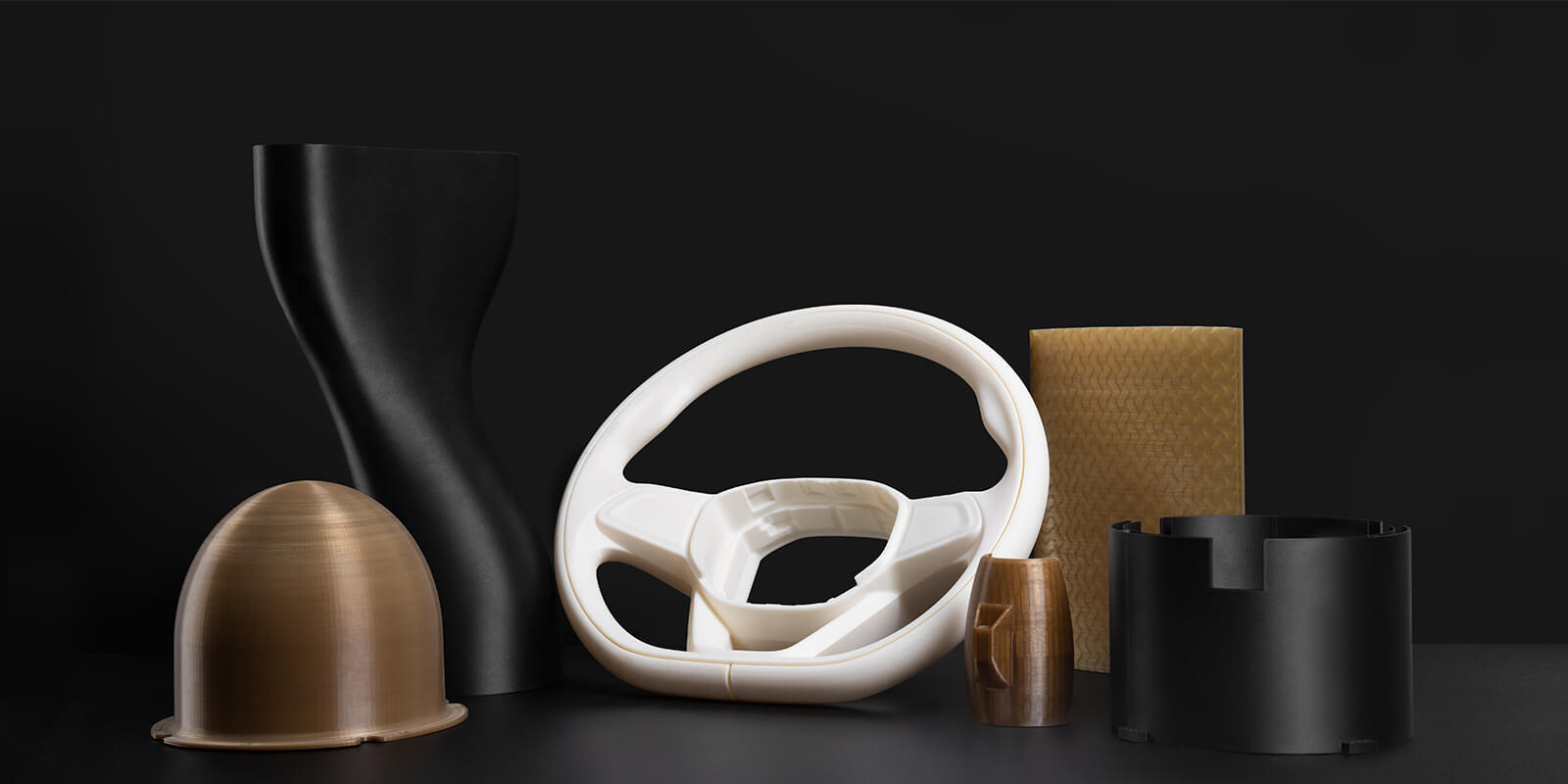

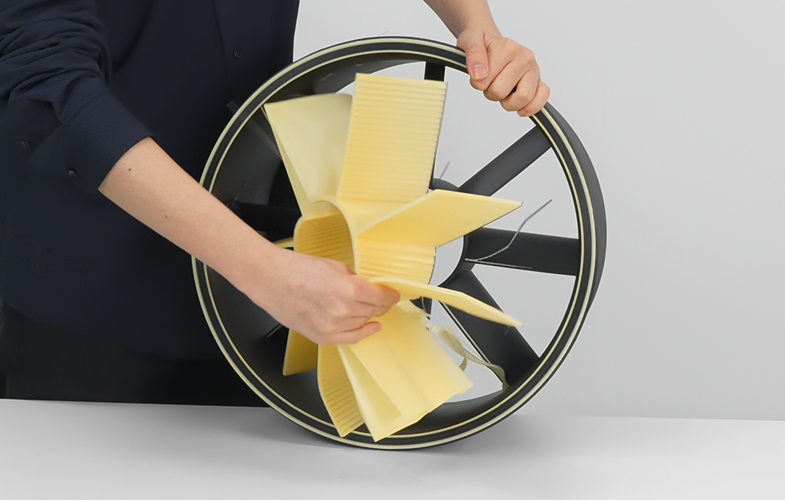

MULTI-MATERIAL CAPABILITY
OPEN MATERIALS SYSTEM
| Printing Technology | Fused Filament Fabrication (FFF) |
| Build Volume | 610 x 508 x 508 mm |
| Build Platform | Vacuum System |
| Leveling | Automatic Leveling |
| Layer Thickness | 0.05-0.5mm |
| Printing Speed | XY: Max. 500mm/s Z: Max. 300mm/s |
| Printing Nozzles | 2 Printing Nozzles Without Scratching |
| Extruder Temperature | Max. 500°C |
| Platform Temperature | Max. 300°C |
| Chamber Temperature | Max. 300°C |
| Filament Chamber Temperature | Max. 70°C |
| Input File Type | STL, OBJ |
| Filament Diameter | 1.75mm/2.85mm |
| Position Resolution | XY: 12µm Z: 7µm |
| Motor Drive | High Precision Servo System |
| Smart Monitor & control | Auto-cleaning Nozzles, Filament Jam Warning, Filament Absence Warning, Power Failure Recovery, Water and Active Air Cooling, Over Heat Protection |
| Safety Certification | FCC and CE |
| Connectivity | WiFi, Internet, USB |
| Supported Materials | PEEK, PEEK+CF, PEKK, ULTEM (PEI), PPSU, PC, PC Alloys, PA, PA+CF, ABS, Carbon Fiber-Filled, Metal-Filled, Fiberglass-Filled, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, etc. |
